COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal Special O-ring
| Lugar de origen | Chian |
|---|---|
| Nombre de la marca | DZK |
| Certificación | ROHS |
| Número de modelo | apa |
| Cantidad de orden mínima | 100pcs |
| Precio | negotiate |
| Detalles de empaquetado | 100pcs/bolsa |
| Tiempo de entrega | 7-10 días |
| Condiciones de pago | L/C, T/T |
| Capacidad de la fuente | 1000000pcs/mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp es un servicio de mensajería:0086 18588475571
¿Qué quieres decir?: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Nombre del producto | COP/APA | Material | FKM (fluoroelastómero) |
|---|---|---|---|
| Calificación de presión | 0 a 1,5 Mpa | Rango de temperatura | -20°C a +200°C |
| Color | Marrón (Estándar) | Medio de trabajo | Aceite mineral, aceite sintético, agua. |
| Propiedades del material | Resistente al aceite, resistente al desgaste y antienvejecimiento. | Estructura | Ranurado por ambos lados, de doble efecto |
Descripción de producto
COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal | High-Performance FKM O-Ring for Extreme Conditions
Product Overview
The COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal is a premium sealing solution engineered for the most demanding industrial applications. Manufactured from high-grade Fluoroelastomer (FKM), this specialized O-ring delivers exceptional performance in extreme temperatures, aggressive chemicals, and high-pressure environments, ensuring reliable sealing in both stroke directions of double-acting cylinders.
Key Features & Benefits
1.Material Performance: Strong material properties, with excellent resistance to high and low temperatures (-20°C to 200°C), strong acids, strong alkalis, and various oils, as well as outstanding chemical stability, making it less prone to swelling and cracking.
2. Good Sealing Effect: Well-suited for the reciprocating motion of double-acting cylinders, it conforms closely to the sealing surface, minimizes leakage under high pressure, has low compression deformation, and ensures long-term reliable sealing.
3. Outstanding Durability: High wear resistance and tear resistance, with good ozone aging resistance. Its lifespan is 3-5 times that of ordinary rubber rings, reducing replacement frequency.
4. High Adaptability and Cost-Effectiveness: Precisely matches the operating conditions of APA double-acting cylinders, reduces equipment maintenance costs, and can be used in multiple high-end scenarios such as chemical industry, machine tools, and automobiles.
Technical Specifications
| Parameter | Standard Specification |
|---|---|
| Material | FKM (Fluoroelastomer) |
| Temperature Range | -20°C to +200°C |
| Pressure Rating | 0-1.5 MPa |
| Color | Brown (Standard) |
Applications
-
Hydraulic Systems - High-pressure cylinders in manufacturing equipment
-
Chemical Processing - Pumps and valves handling corrosive media
-
Automotive Industry - Engine and transmission systems
-
Oil & Gas Equipment - Drilling and refining machinery
-
Aerospace Applications - High-temperature hydraulic systems
Material Advantages of FKM
Superior Chemical Resistance
-
Excellent resistance to oils, fuels, aromatics, and most chemicals
-
Minimal swelling in hydrocarbon-based fluids
-
Maintains performance in aggressive industrial environments
Thermal Stability
-
Continuous operation at elevated temperatures
-
Rapid thermal cycling capability
-
Retains elasticity across full temperature range
Mechanical Properties
-
Excellent compression set resistance
-
Good tensile and tear strength
-
Low gas permeability

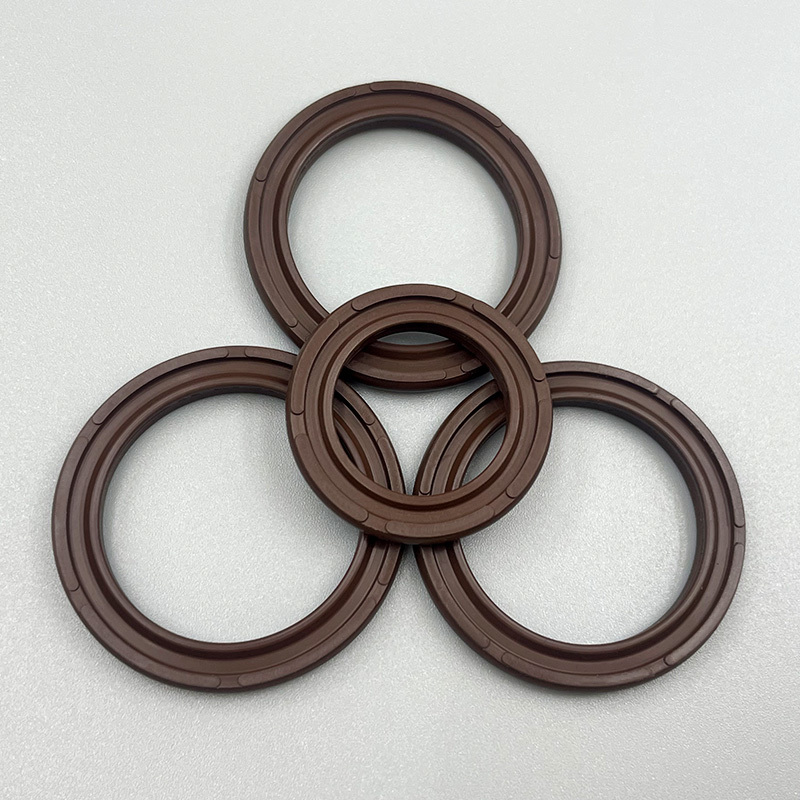

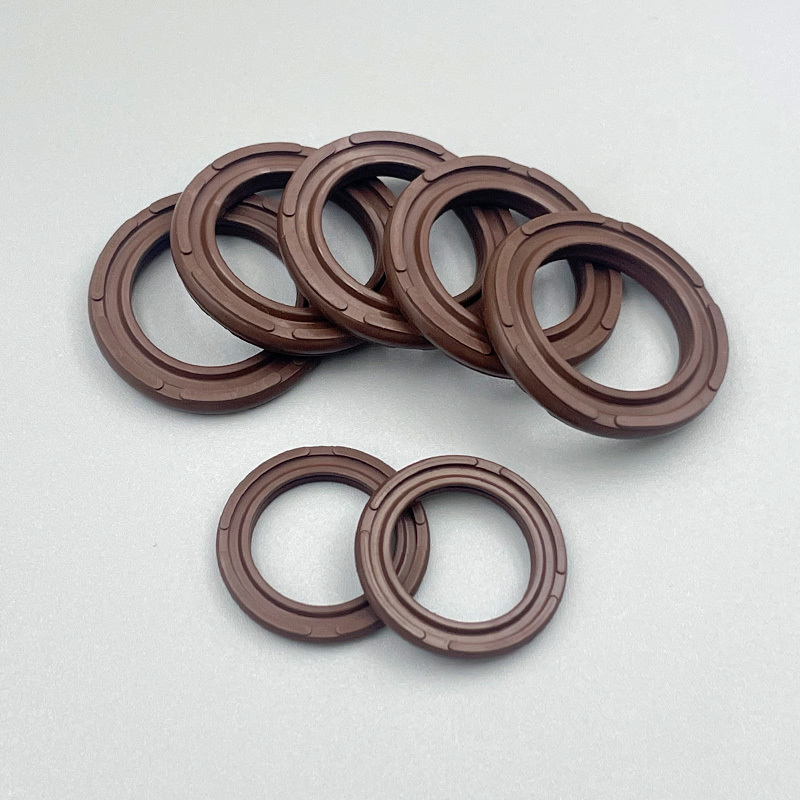

Product real shot
