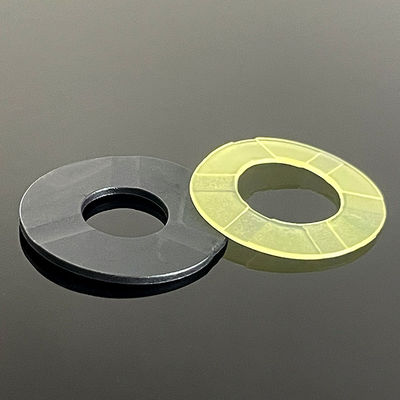

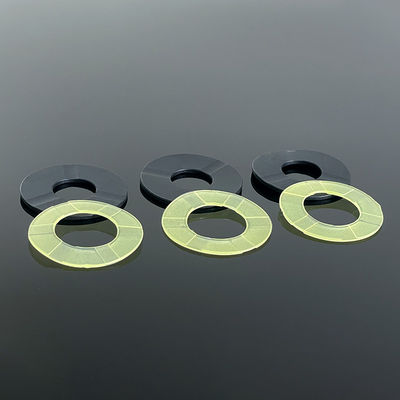

NBR/TPU Step-Free Buffer Gasket for Mini Cylinders | Wear-Resistant, Step-Free Cushioning for Mini/Dual-Axis Cylinders
| Lugar de origen | Chian |
|---|---|
| Nombre de la marca | DZK |
| Certificación | ROHS |
| Número de modelo | Junta de tampón sin pasos NBR/TPU para mini cilindros |
| Cantidad de orden mínima | 100pcs |
| Precio | negotiate |
| Detalles de empaquetado | 100pcs/bolsa |
| Tiempo de entrega | 7-10 días |
| Condiciones de pago | L/C, T/T |
| Capacidad de la fuente | 1000000pcs/mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp es un servicio de mensajería:0086 18588475571
¿Qué quieres decir?: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Nombre | Junta de búfer paso a paso | Material primario | Alta dureza NBR/TPU |
|---|---|---|---|
| Presión | 0-1.6Mpa | Color | negro, amarillo |
| Forma | círculo | cilindro aplicable | mini cilindro/cilindro de doble eje |
| Actuación | resistente al desgaste y resistente al aceite 、 ácido y álcali resistente a la resistencia al calor | Functiom | Absorción de impacto y protección de la superficie, con una fuerte adaptabilidad a espacios estrecho |
Descripción de producto
NBR/TPU Step-Free Buffer Gasket for Mini Cylinders | Eliminate End-Stroke Impact in Compact Spaces
Solve Miniaturization Challenges: Achieve smooth, quiet, and reliable cushioning in miniature and dual-axis cylinders where traditional stepped buffers cannot fit.
Product Overview: Precision Buffering, Suitable for Compact Design
Our high-hardness NBR/TPU material stepless buffer gasket is a cleverly conceived, simple yet crucial component, specifically designed for micro and dual-axis cylinders with extremely limited internal space. Unlike bulky traditional stepped buffers, this flat, high-performance gasket can directly provide effective deceleration and impact absorption at the end cap, ensuring smooth operation and significantly extending the service life of compact pneumatic actuators.
Ideal Applications: Mini cylinders, dual-axis cylinders, guided cylinders, and other compact pneumatic actuators where internal space is precious.
Key Features & Unmatched Benefits
- True Step-Free Design: Ultra-thin, flat profile installs easily in cylinders with no room for conventional stepped buffers.
- Exceptional Wear Resistance: Made from high-grade NBR (Standard) or TPU (High-Performance), offering outstanding abrasion resistance for millions of cycles.
- High Hardness for Effective Damping: Specially formulated compounds provide the optimal hardness to absorb impact energy without compromising sealing.
- Reduced Noise & Vibration: Effectively dampens the metallic "clang" at end-of-stroke, creating quieter machinery.
- Easy Installation: A simple drop-in component that requires no modification to your cylinder.
Technical Specifications
| Parameter | Standard (NBR) | High-Performance (TPU) |
|---|---|---|
| Primary Material | Nitrile Butadiene Rubber (NBR) | Thermoplastic Polyurethane (TPU) |
| Hardness (Shore A) | 80° ±5 | 90° ±5 |
| Temperature Range | -30°C to +100°C | -40°C to +110°C |
Material Selection Guide
- Choose NBR (Standard): For most general industrial applications. Excellent balance of cost and performance, with good resistance to lubricants and wear.
- Choose TPU (Premium): For high-cycle applications, higher speeds, or where maximum service life is critical. Superior abrasion resistance and mechanical strength.
Applications: Where It Makes a Difference
This buffer gasket is essential in precision automation equipment using compact pneumatic actuators:
- Electronics Assembly: PCB handling, component insertion, mini pick-and-place units.
- Medical & Laboratory Automation: Diagnostic equipment, sample handling, precision fluid dispensing.
- Robotics: Small robotic grippers and end-effectors.
- Packaging Machinery: Small product sorting and positioning.
- Precision Instrumentation: Optical lens adjustment, sensor actuation.
