Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer
| Lugar de origen | Chian |
|---|---|
| Nombre de la marca | DZK |
| Certificación | ROHS |
| Número de modelo | JB982-77 |
| Cantidad de orden mínima | 100pcs |
| Precio | negotiate |
| Detalles de empaquetado | 100pcs/bolsa |
| Tiempo de entrega | 7-10 días |
| Condiciones de pago | L/C, T/T |
| Capacidad de la fuente | 1000000pcs/mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp es un servicio de mensajería:0086 18588475571
¿Qué quieres decir?: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Nombre del producto | Sellos de lavadora de sellado combinado | Materiales primarios | 304 acero inoxidable, NBR |
|---|---|---|---|
| Rango de temperatura | -25 ° C a +100 ° C | Medio | Aceite |
| Estándar de gobierno | JB982-77 | Dureza | 70 dureza en tierra |
| característica | Resistente al aceite, resistente al desgaste, impermeable y a prueba de polvo, resistente a la alta |
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Descripción de producto

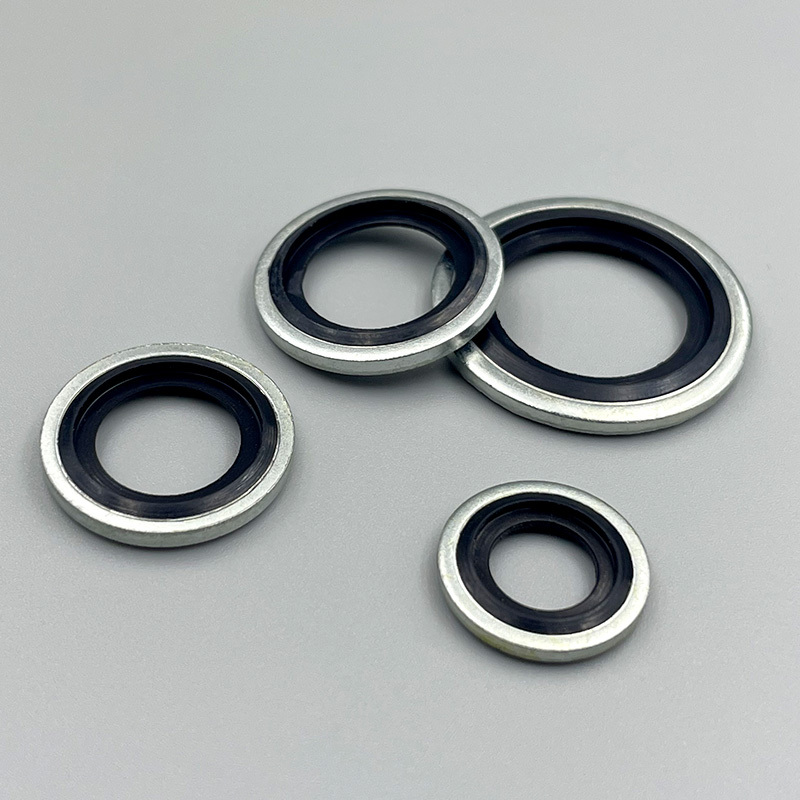

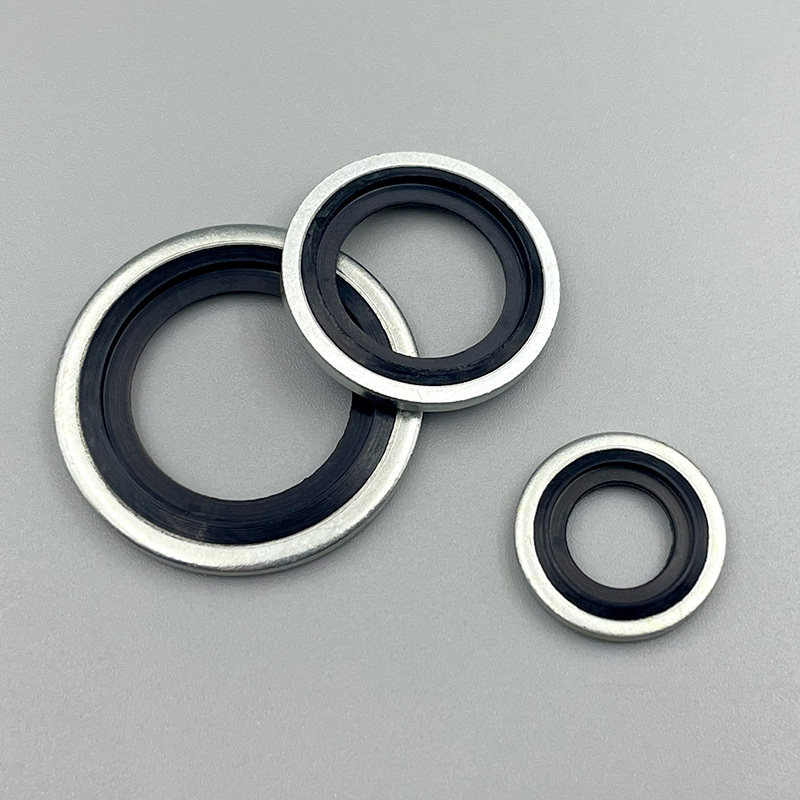

JB982-77 Combined Sealing Washer | All-Metal Self-Sealing Washer for High-Pressure & High-Temperature Applications
Integral Sealing & Fastening | Aerospace & Hydraulic Standard | Reusable Design
Product Overview
The JB982-77 Combined Sealing Washer is a precision-engineered,Composed of a metal gasket and rubber, it uses oil as the medium and is used for sealing threaded pipe joints and plugs. Its operating pressure is 400 kgf/cm² (39.2 MPa) and operating temperature ranges from -25℃ to 80℃. The gasket is a component placed between the connected part and the nut, usually a flat metal ring. It serves to protect the surface of the connected part from scratches by the nut and distribute the pressure of the nut on the connected part.
Technical Specifications (Typical)
| Parameter | Standard Specification |
|---|---|
| Governing Standard | Jb982-77 |
| Primary Materials | 304 stainless steel, NBR |
| Temperature Range | -25°C to +100°C |
| Hardness | 70 Shore Hardness |
| characteristic | Oil-resistant, wear-resistant, waterproof and dustproof, high-temperature resistant |
Core Features and Advantages
- Two-in-One Design: Combines the functions of a flat washer and a sealing washer, simplifying the assembly process.
- All-Metal Construction: Made of stainless steel, suitable for extreme temperature and pressure environments.
- Pressure-Activated Sealing: The sealing lip deforms under bolt torque to form an airtight or liquid-tight seal.
- Reusable: Can usually be reused multiple times if within the deformation limit, reducing lifecycle costs.
- Wide Compatibility: Resistant to corrosion, radiation, and most highly corrosive chemicals.
Application Fields
It is widely used in hydraulic and pneumatic systems, construction machinery and other fields. It is suitable for working conditions with sealing surface deviation or vibration, ensuring sealing reliability.
